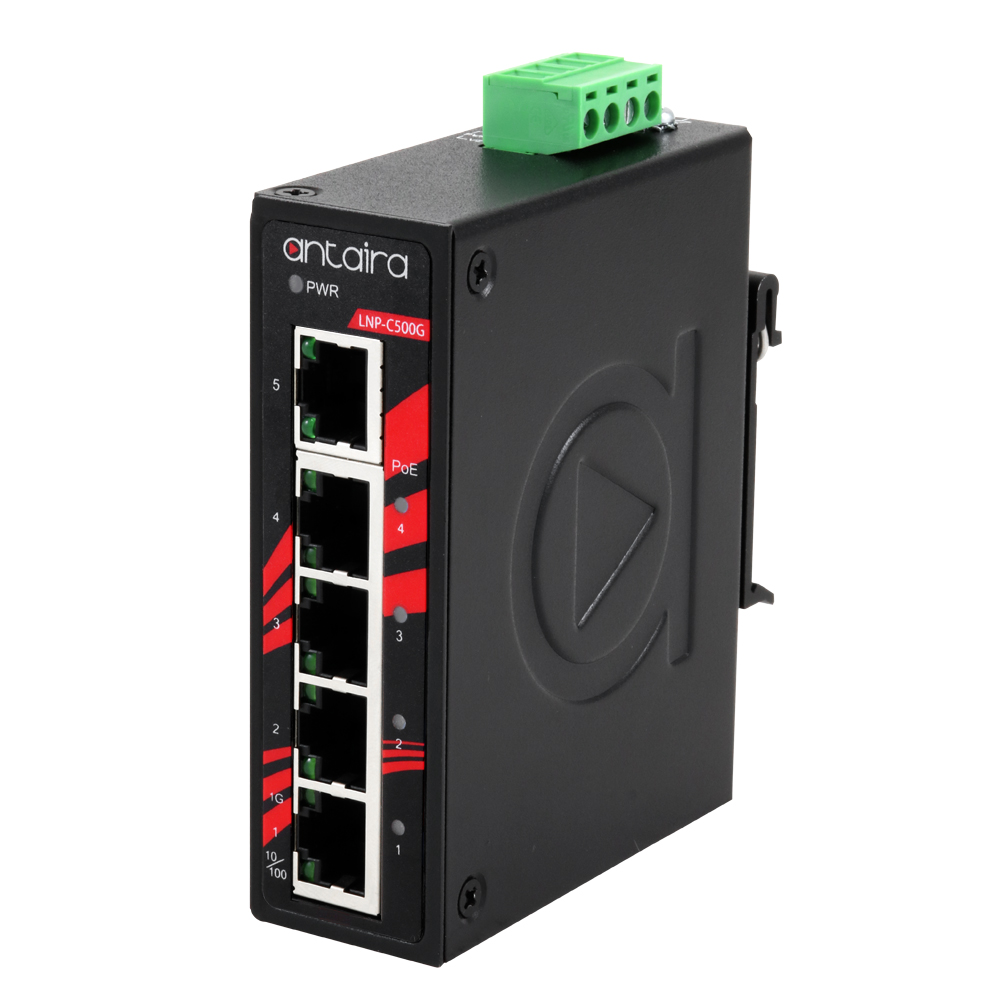

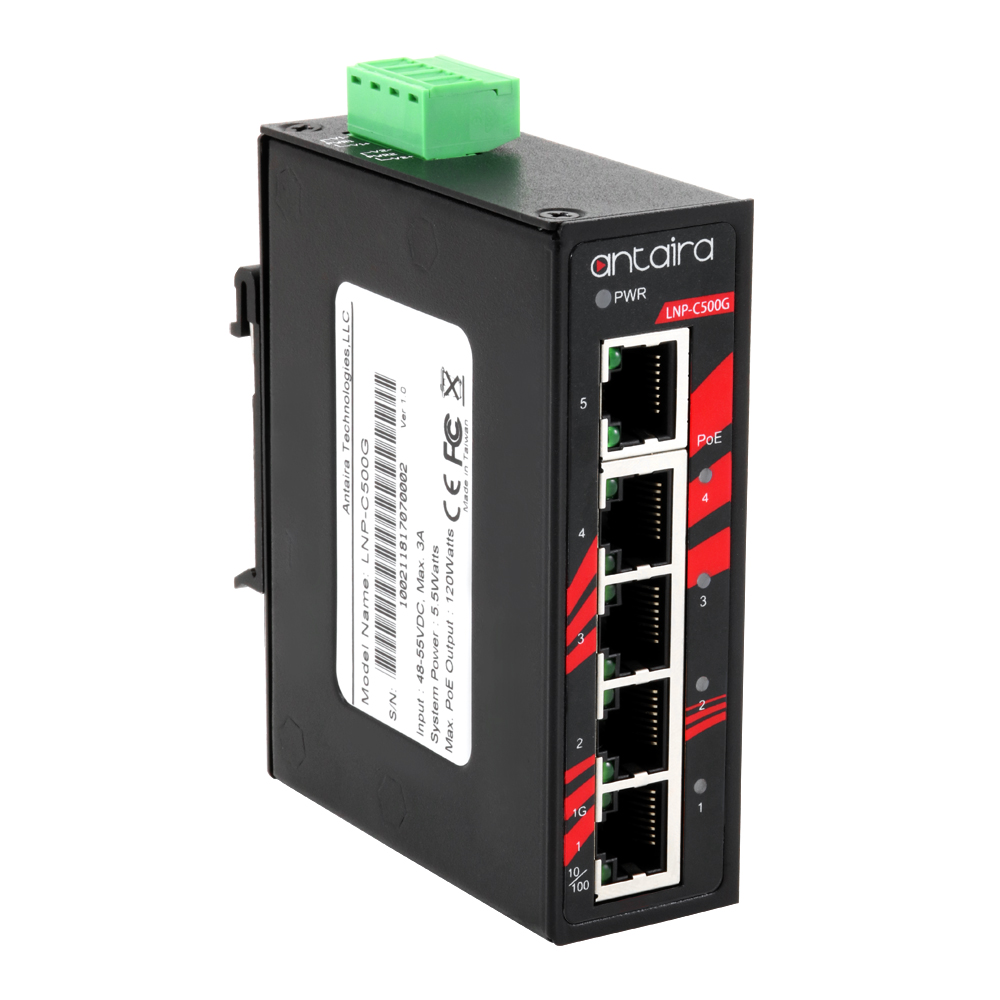

Antaira Technologies’ LNP-C500G is a compact 5-port industrial gigabit PoE+ unmanaged Ethernet switch. The small form factor of this metal IP30 rated design is 50% smaller allowing for a more versatile implementation. It is equipped with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. It can handle high bandwidth applications in tight spaces.
LNP-C500G supports high EFT & ESD protection through the redundant power inputs that support reverse polarity and overload current protection. This model supports DIN-rail as well as wall mountable orientations, and support operating temperature from -10° to 70° C. This is an industrial grade unit applicable for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.
- Compact Industrial Grade Design
- Supports 4*10/100/1000Tx Gigabit Ethernet Ports
- (PSE: 30W/Port) and 1*10/100/1000Tx
- Supports Auto MDI/MDI-X Function
- Jumbo Frame Support: 10k
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 48~55VDC
- Power Polarity Reserve Protection
- Overload Current Protection
- IP30 Rugged Metal Case Design

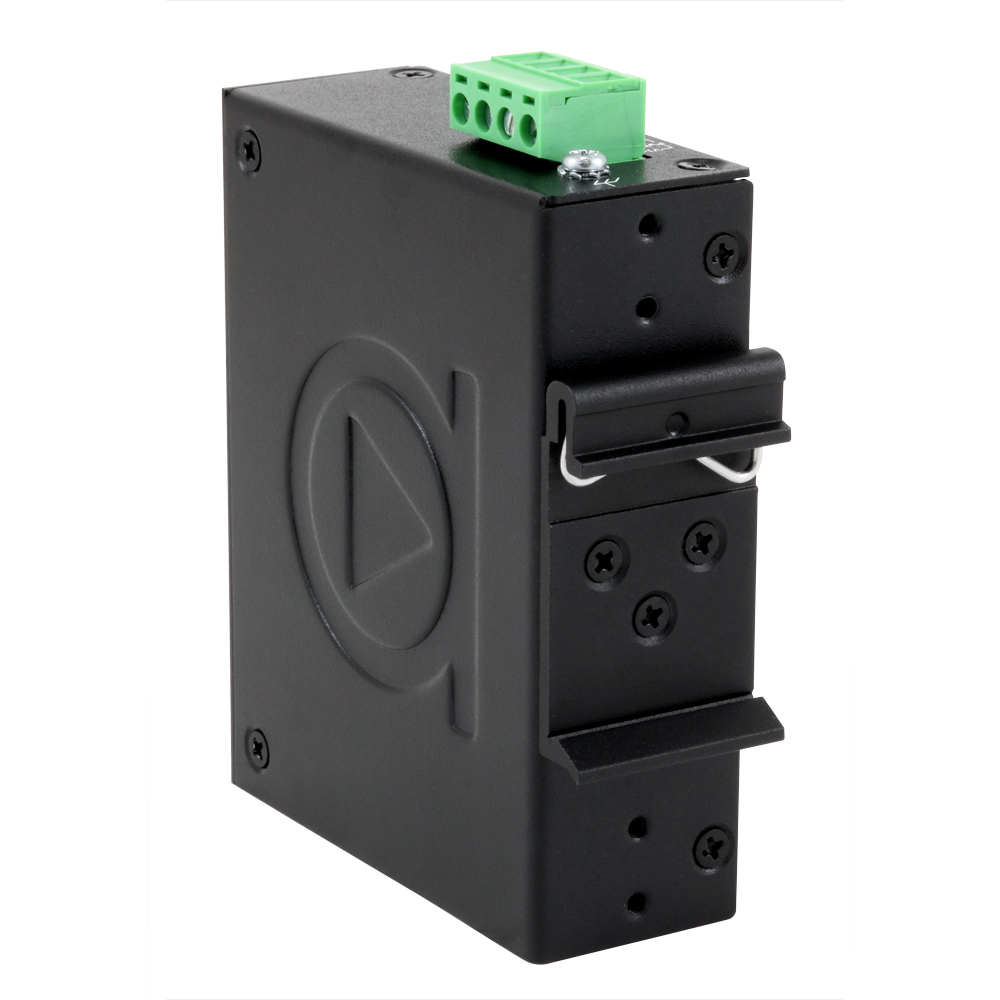

- DIN-Rail and Wall Mount Support
- Operating Temperature Range:
- STD:-10° to 70°C, EOT:-40° to 75°C
- 5-Year Warranty

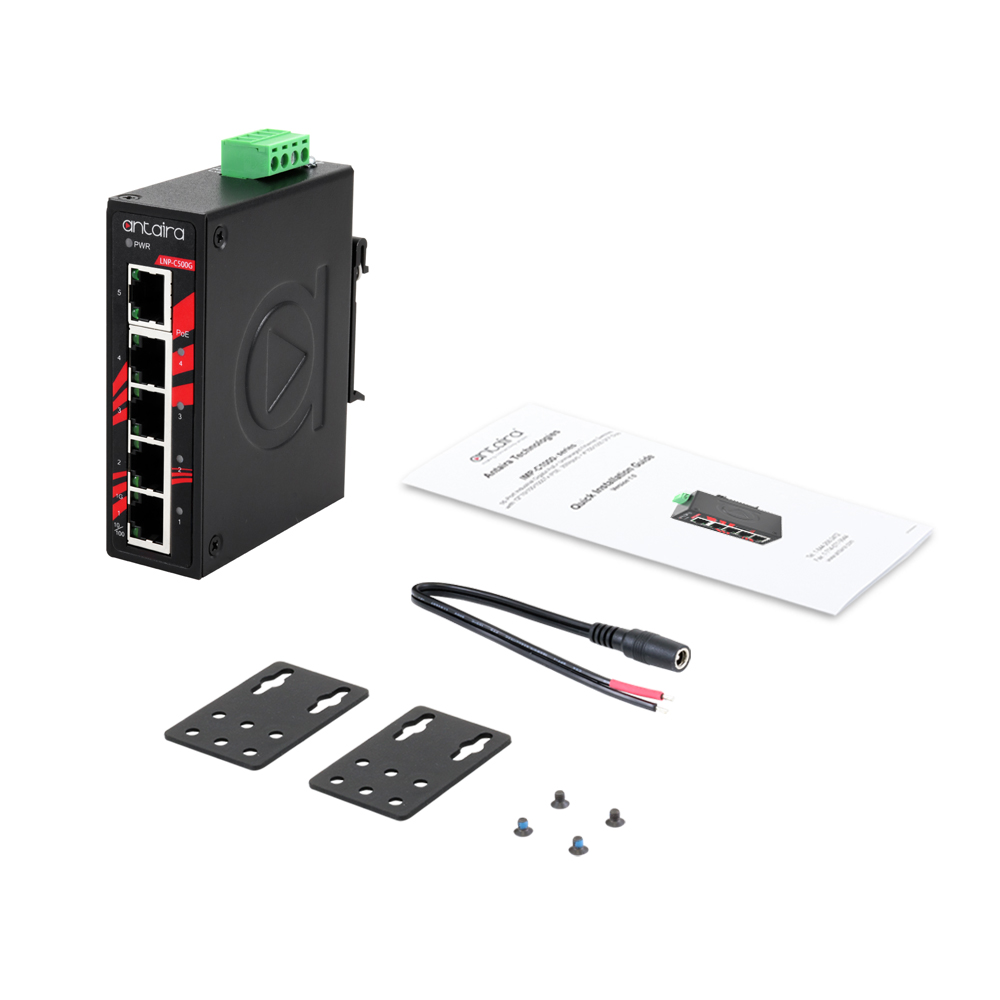

- 1 – Quick Installation Guide
- 1 – LNP-C500G Industrial PoE+ Gigabit Unmanaged Ethernet Switch
- 1 – Wall mounting bracket set with screws
- 1 – DC cable – 18 AWG & DC jack 5.5×2.1mm
-
