Introduction

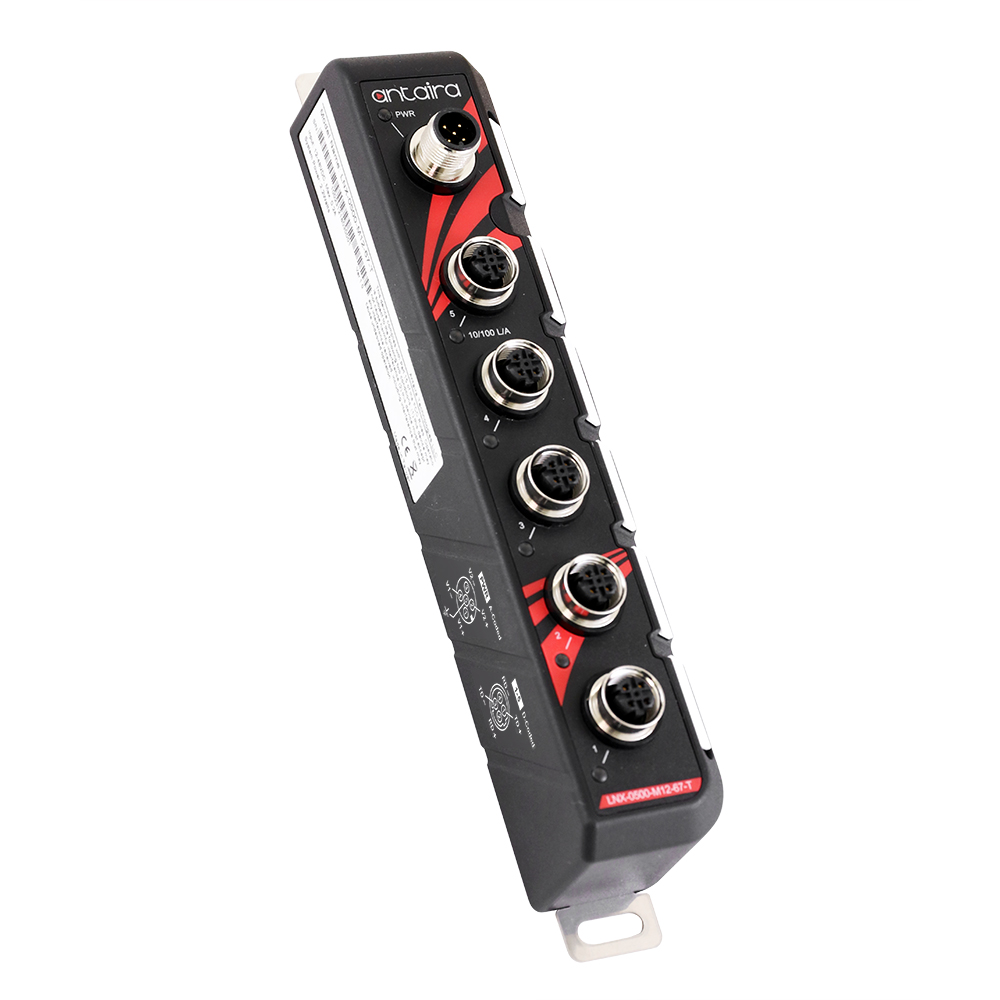

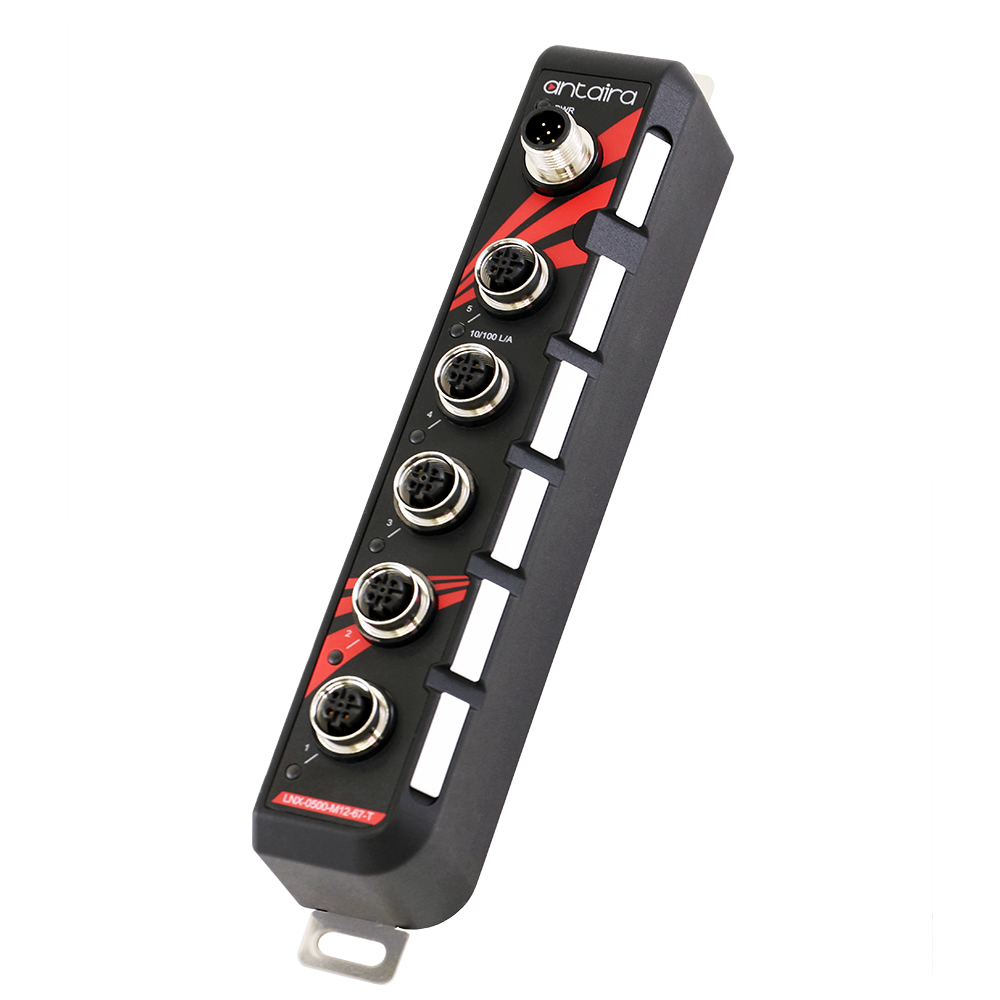

Net Vibe Connect’ LNX-0500-M12-67 is a 5-port 10/100Tx M12 IP67 industrial switch that meets the highreliability requirements demanded by industrial applications. It features operating temperature of -10° to 70° C, which allows this device to be used in various industrial environments. Its M12 connectors ensure a tight, robust connection and guarantees reliable operation in applications that are subject to high vibration and shock in environments containing dust, liquid, or laden with gas.
Features
- 5*10/100Tx Fast Ethernet
- M12 (A-coded) connector with IP67 Rated Protection
- IP67 Rugged Plastic Case Design
- M12 FE Port Support Auto MDI / MDI-X Function
- Auto Negotiation Speed, Half / Full Duplex
- Store-and-Forward Switching Architecture
- Redundant Power Input: 12~48VDC
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- 5-Year Warranty

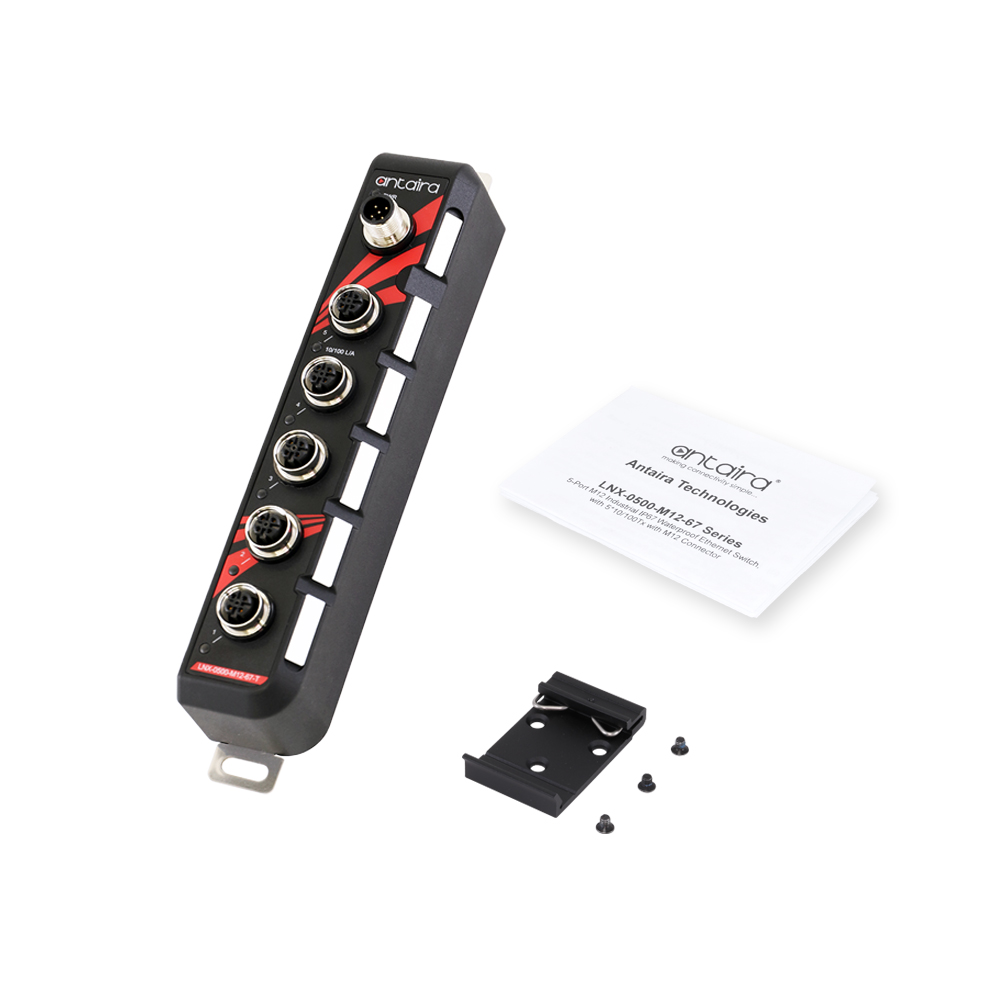

Package Content
- 1 – DIN-Rail kit with screws
- 1 – LNX-0500-M12-67
- 1 – Quick Installation Guide
- 6 – M12 protective caps
- 6 – Port labels
Optional Accessories
-
- CB-M12A5PF-5M
- M12 A Code 5P Female to Open Cable, 5 Meter, Wire:UL 24AWG*5C Black, IP68 Protection
-
- CB-M12D4PM-RJ45-5M
- M12 D Code 4P Male to RJ45 Cable, 5 Meter, Wire: CAT5e STP 24AWG Black, IP68 Protection
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3x Flow Control
Processing Type
Store and Forward
Protocol
CSMA/CD
Flow Control
IEEE 802.3x flow control, back pressure flow control
Performance
MAC Table Size
1K
Memory Buffer
448kbits
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric)
Ethernet Interface
Ethernet Port Count
5 ports
10/100 BASE-T(X)
5 ports
M12 Connector
4-pin D-Coded female connector
Other Interface
LED Indicator
- System: Power
- Ethernet Ports: On-Link/Flash-data transmitting
Mechanical Characteristics
Housing
Plastic, IP67 protection

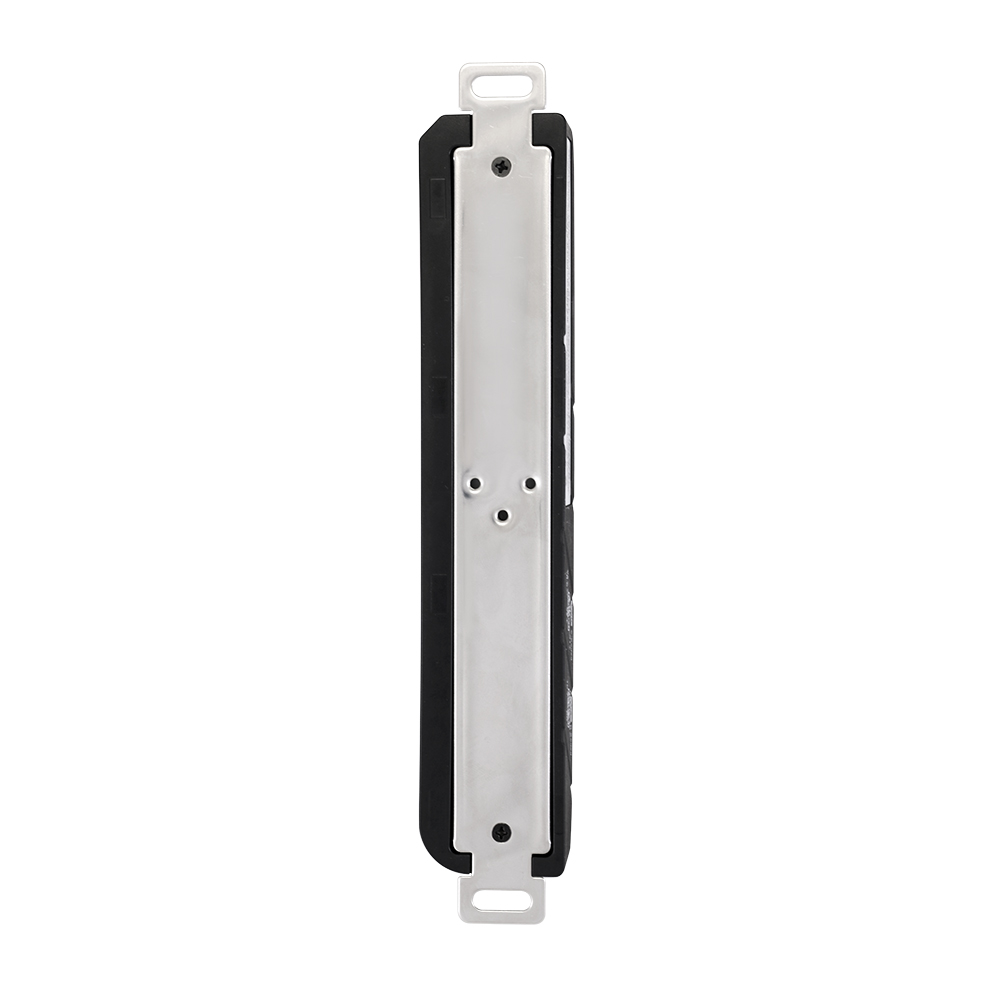

Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
37.13 × 215.73 × 32.8 mm
Weight
- Unit weight : 0.749 lb
- Shipping weight : 1.322 lbs
Power Requirements
Power Connection
M12, 5-pin A-Coded male connector
Input Voltage
12V–48V DC, Redundant Input
Power Redundancy
Yes
System Power Consumption
500m Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Environmental Limits
Operating Temperature
-10° to 70° C (14° to 158° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
Certifications
FCC, CE
UL 61010-1 / UL 61010-2-201
✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024/EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Green
RoHS Compliant
Warranty
5 years
