Introduction

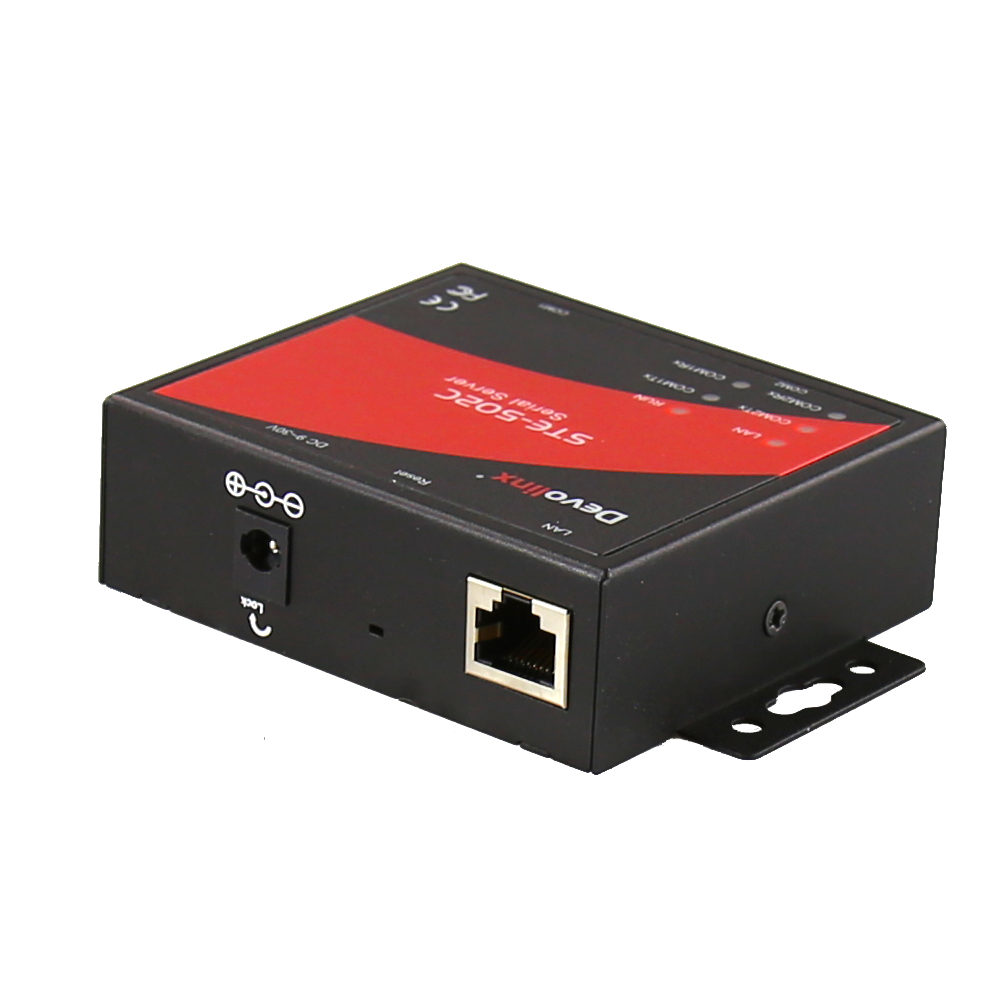

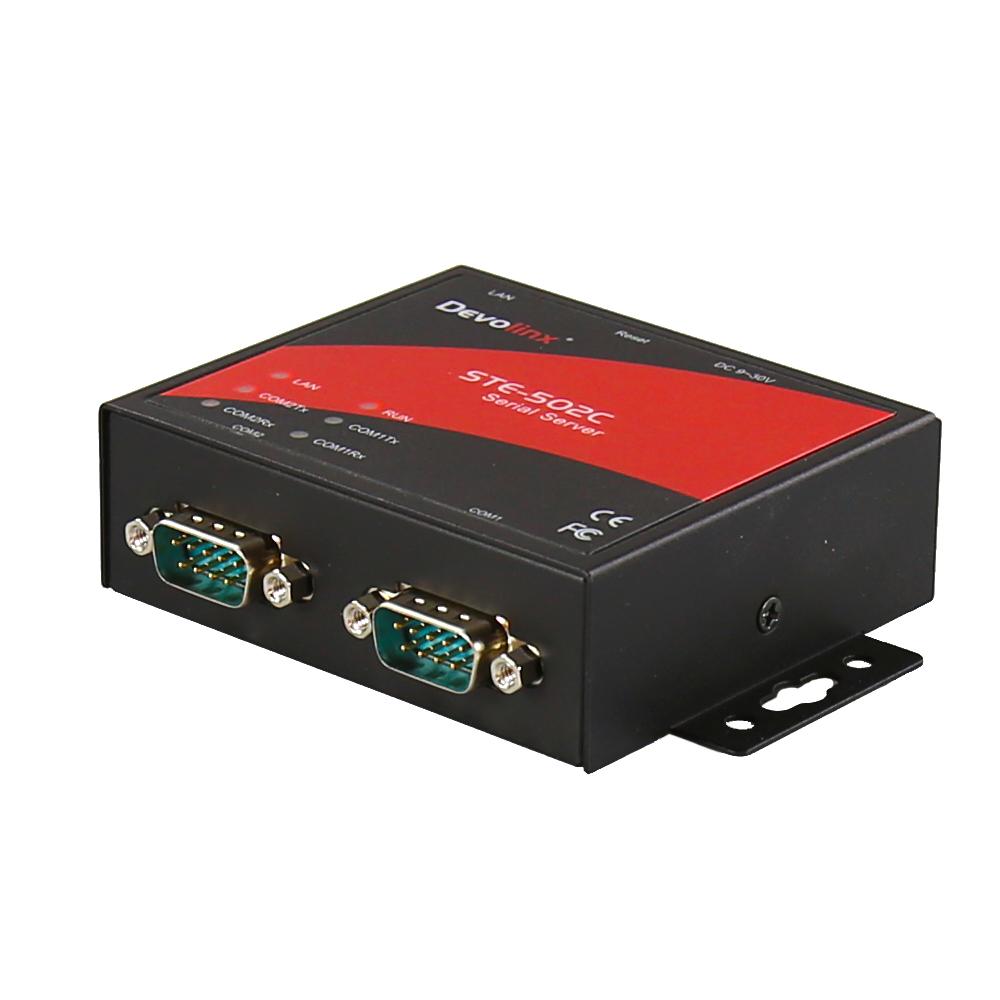

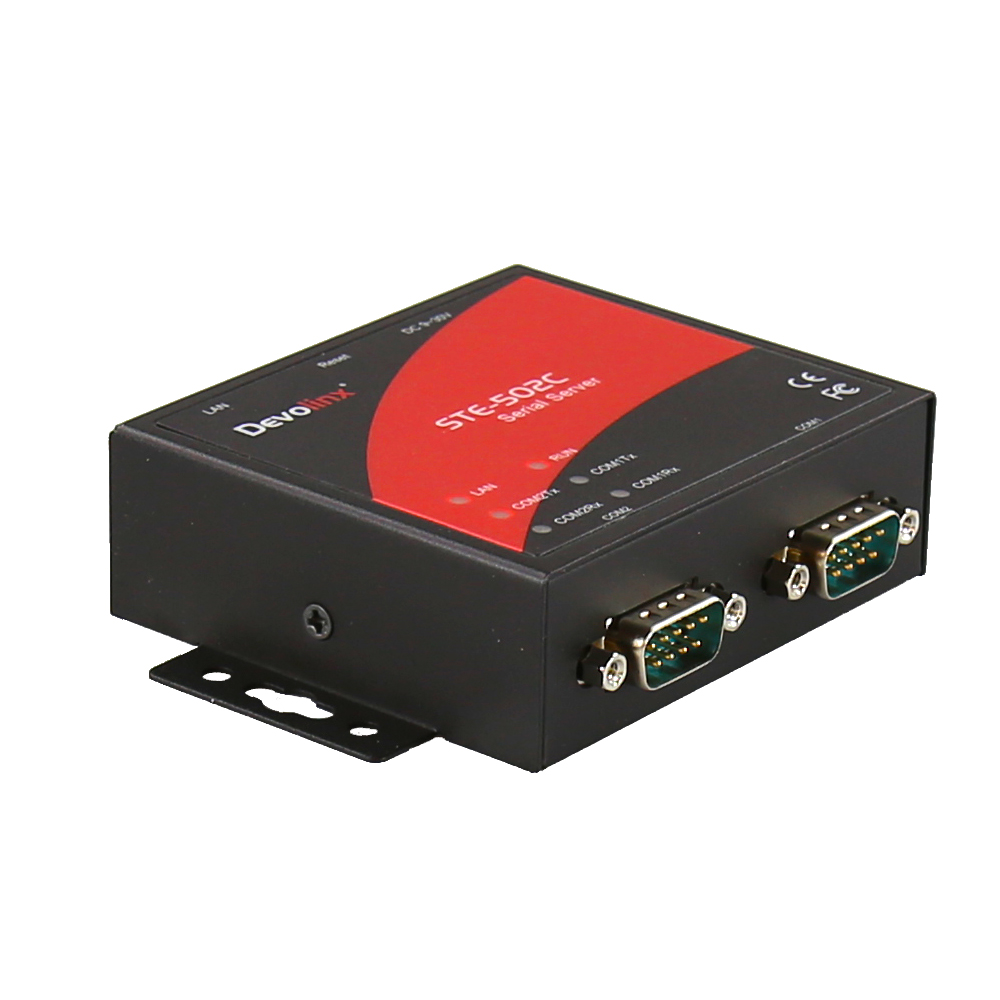

The STE-502C is a dual port gateway between Ethernet (TCP/IP) and Serial signal communications. It allows almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, the STE-502C offers full-duplex, bi-directional data transmission transparent between serial port and Ethernet network. Capable of using either RS232, RS422 or RS485 serial communication standards the STE-502C is ideal for upgrading industrial serial devices onto a Ethernet network.
Features
- Rugged Metal Case with DIN-Rail / Wall-Mount
- 15 KV ESD Protection for Serial Signals
- 10/100Mbps Fast Ethernet Full Duplex Auto Negotiation
- Supports Multiple Link Mode with TCP Server/Client, UDP, and Virtual COM Mode
- Monitor, Manage, and Control Industrial Field Devices Remotely
- Configurable via Built-in Web Server, Serial Console, or Telnet
- Windows Based Utility for IP Configuration
- Upgradeable Firmware from Remote-PC via Ethernet

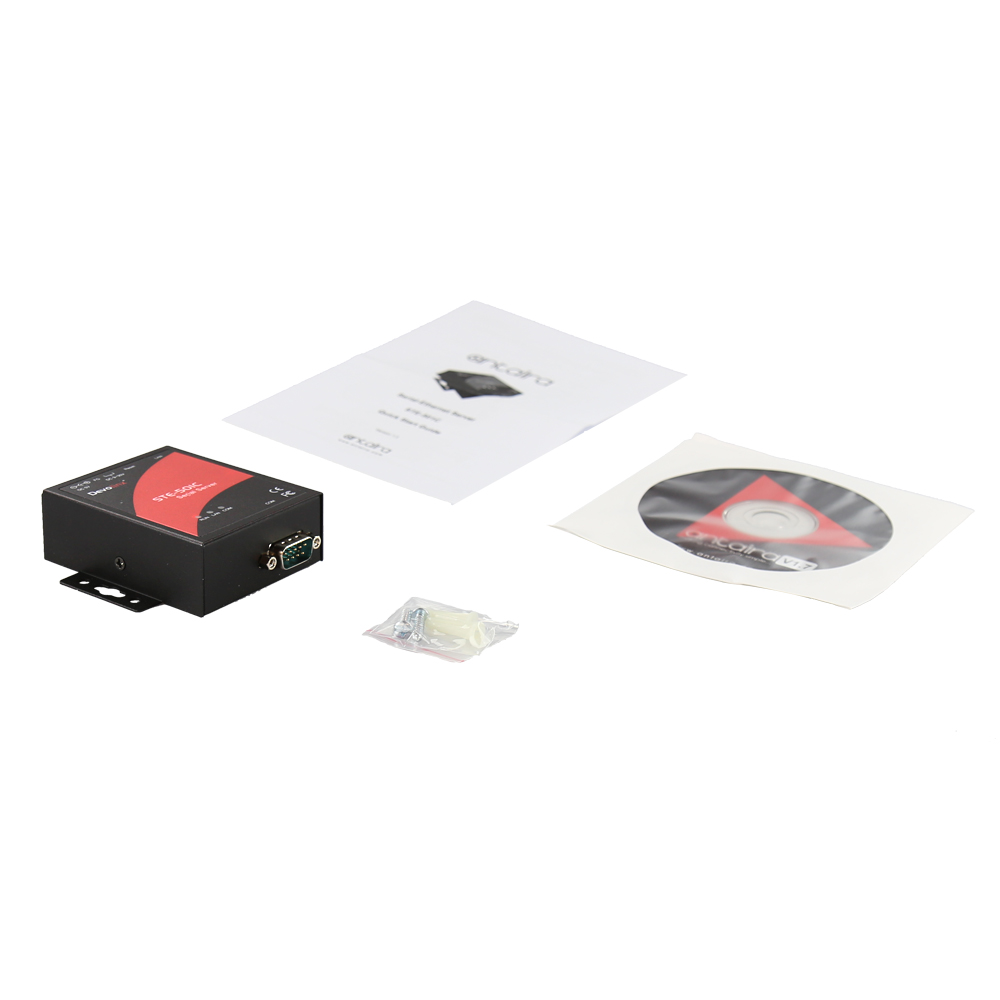

Package Content
- STE-502C
- CD Manual/Software
- Quick Start Guide
Optional Accessories
-
- AD-DB9F-TB5P38
- DB9 Female to 5-pin 3.8mm Terminal Block RS422/485 Adapter for STE- & STW- series
-
- GC-F09F09-N
- Mini Gender Changer DB9 F/F Null Modem
-
- GC-F09F09-S
- Mini Gender Changer DB9 F/F Straight
-
- GC-F09M09-N
- Mini Gender Changer DB9 F/M Null Modem
-
- PA-STE502-US
- Power Adapter For STE-502C w/Lock (US Plug)
