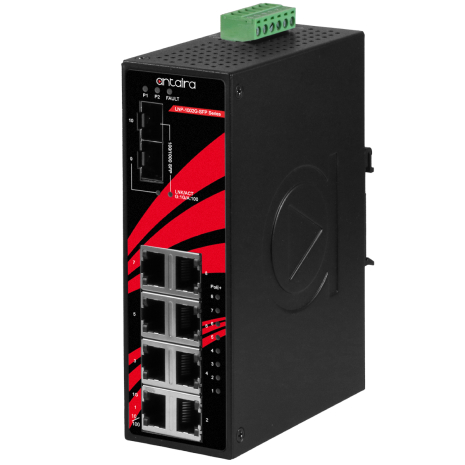

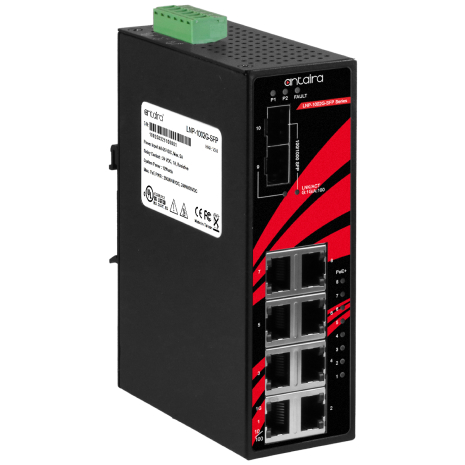

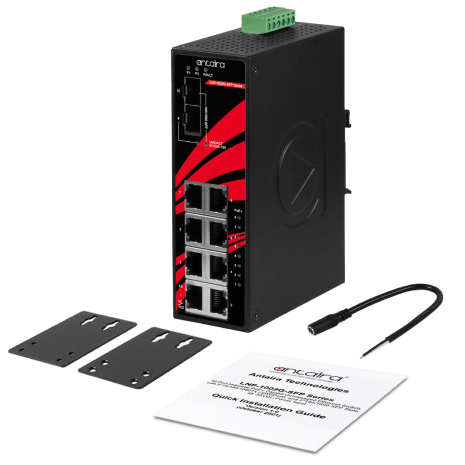

Package Content
- LNP-1002G-SFP-T-CC
Download
Optional Accessories
- CBF-LC01LC-MD
LC To LC 1 Meter Multi-Mode Duplex
- DIN-RACK-2U
Din-Rail to 19″ Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
- PA-60-48-US
Power Adapter for LNP & IMP Series. Input 100-240VAC/1.4A, Output 48VDC/1.25A (US Plug)
- SFP-M
1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, 0º~70ºC
- SFP-S10
1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, 0º~70ºC
- CBF-LC01LC-SD
LC To LC 1 Meter Single-Mode Duplex
- DIN-RAIL-10
35mm Steel DIN-Rail Track – 10 Inches Long
- HDR-60-48
60W Ultra Slim Step Shape DIN Rail, 48VDC output
- NDR-75-48
75W Single Output Industrial Din-Rail Power Supply, 48VDC Output
- NDR-120-48
120W Single Output Industrial Din-Rail Power Supply, 48VDC Output
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3x Flow Control
- IEEE 802.3af/at Power over Ethernet
Processing Type
Store and Forward
Protocol
CSMA/CD
Flow Control
IEEE 802.3x flow control, back pressure flow control
Performance
MAC Table Size
8K
Jumbo Frame
9.6 Kbytes
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric): 20Gbps
Ethernet Interface
Ethernet Port Count
8 ports
10/100/1000 BASE-T(X)
8 ports
PoE Port
8 ports (30W/port)
PoE Pin Assignment
V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Fiber Interface
Fiber Port Count
2 ports
100/1000 BASE-(F)X SFP
2 ports
Wavelength
Refers to SFP module
Mechanical Characteristics
Housing
Metal, IP30 protection

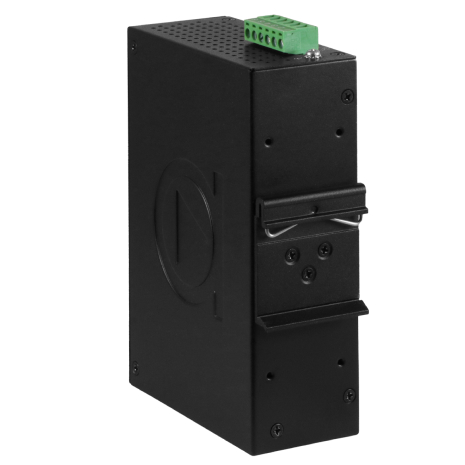

Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
46 × 142 × 99 mm
Weight
- Unit weight : 1.75 lbs
- Shipping weight : 2.15 lbs
Power Requirements
Power Connection
Removable 6-contact terminal block
Input Voltage
48V–55V DC, Redundant Input
Power Redundancy
Yes
Relay Output
24V DC, 1A resistive
System Power Consumption
12 Watts
Max. PoE Power Budget
200W@48VDC, 240W@55VDC
Overload Current Protection
Present
Reverse Polarity Protection
Present
Environmental Limits
Operating Temperature
-40° to 75° C (-40° to 167° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
Certifications
FCC, CE
UL 61010-1 / UL 61010-2-201
✔
ISA 12.12.01 (UL C1D2)
✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Green
RoHs Compliant
Warranty
5 years
Download
Datasheet
