Introduction

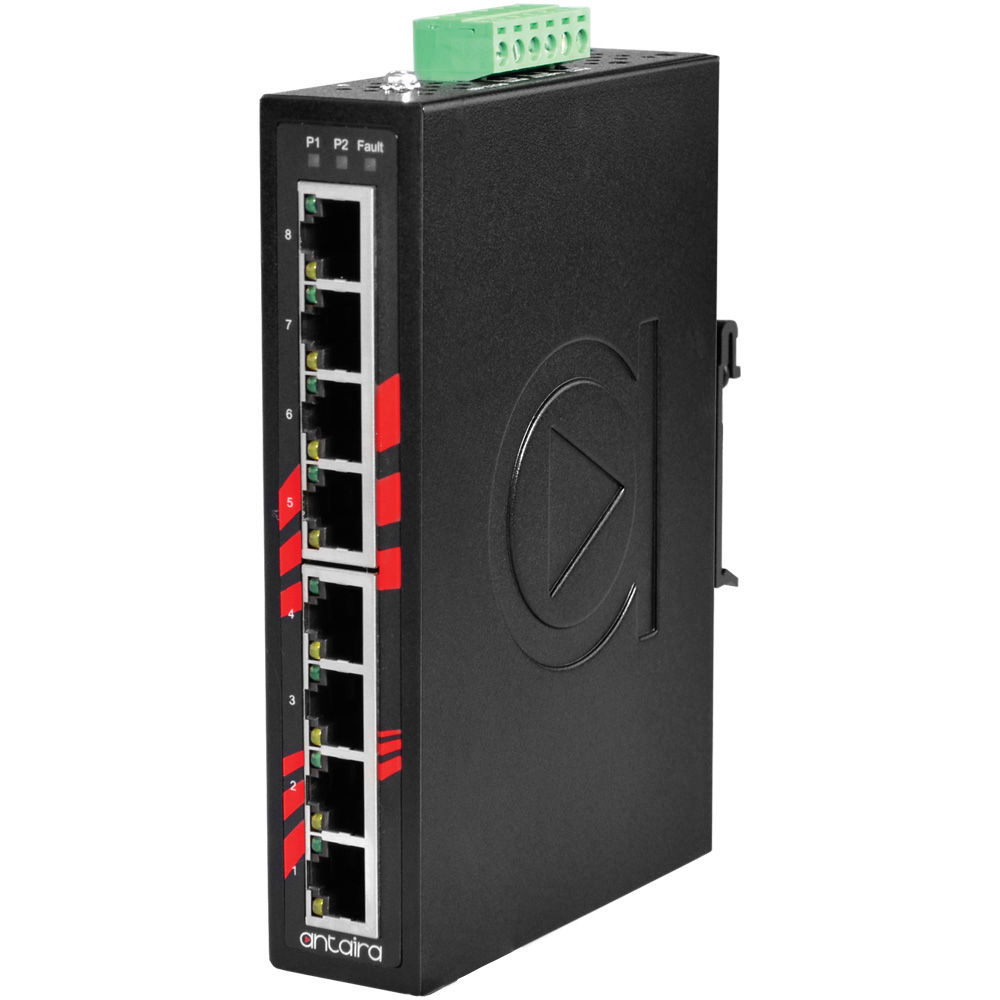

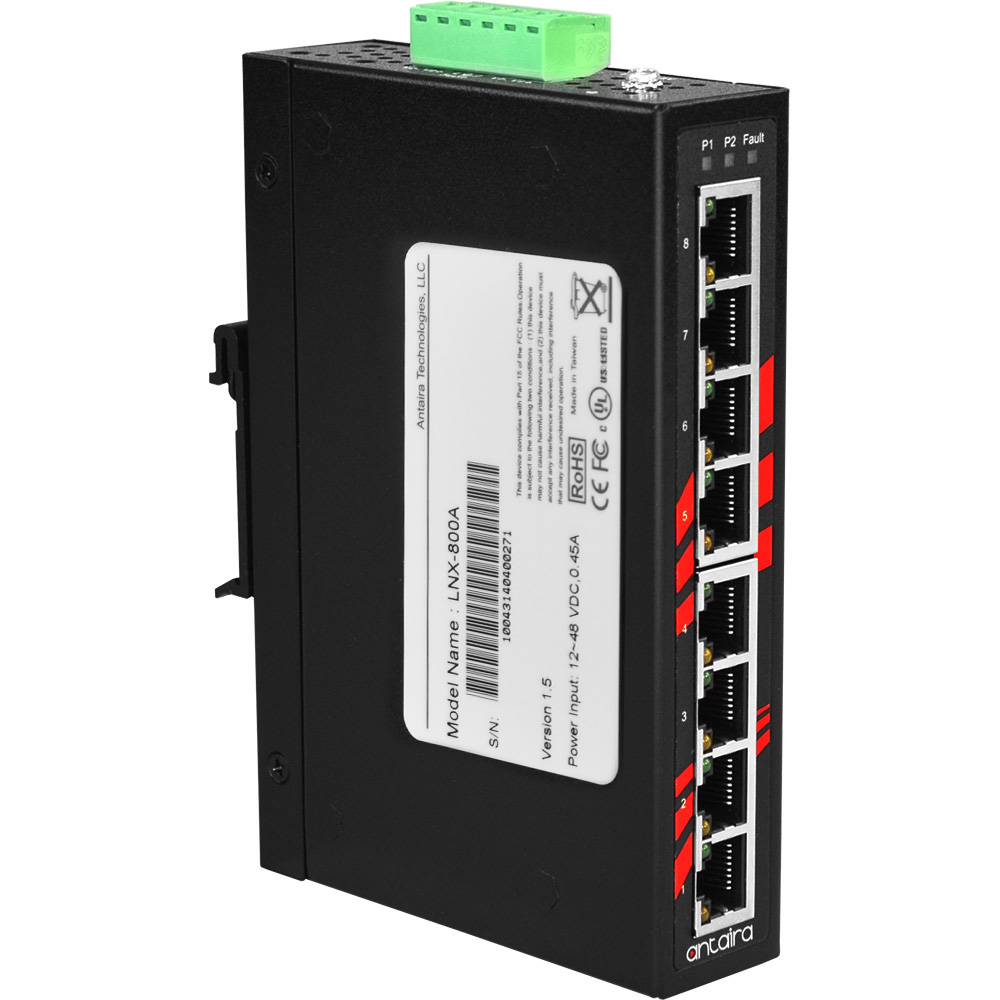

Net Vibe Connect’ LNX-800A-T-CC industrial unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with eight 10/100Tx Fast Ethernet ports that have auto detection support for MDI or MDI-X. The LNX-800A-T-CC provide high EFT and ESD protection and the built-in relay warning function alerts maintainers when power failures or port breaks occur.
Conformal coating is a specialty film which conforms to the contours of the printed circuit board to protect the board from adverse environmental conditions. Net Vibe Connect’s conformal coating process meets or exceed the standards for protection against gases, dust, and water.
The LNX-800A-T-CC has an extended operating temperature range of -40° to 75°C. It is a perfectly designed product to fulfill special needs for industrial automation, outdoor applications, and harsh weather environments.
Features
- Conformal Coating
- Extended Operating Temperature -40°~75°C (-40°~167°F)
- Store and Forward Switching Architecture
- Flow Control on Full-Duplex
- Back Pressure on Half-Duplex
- Supports Auto MDI/MDI-X Function
- Wide-Ranging Redundant Power Design
- UL Class I, Division 2 Certified

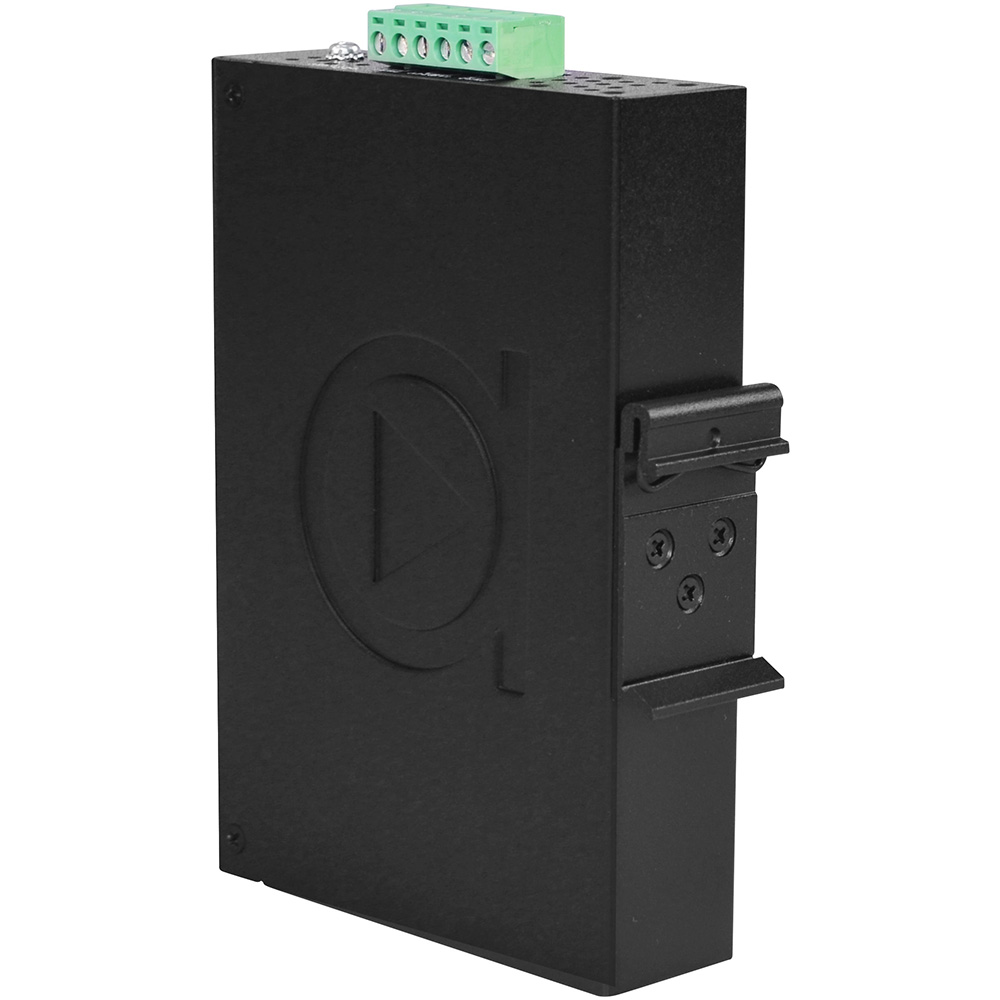

- DIN-Rail and Wall Mount Design
- Slim IP30 Case Design
Package Content
-
- 1 – DC cable –18 AWG & DC jack 5.5×2.1mm
- 1 – Quick Installation Guide
- 1 – Set of wall mounting brackets and screws

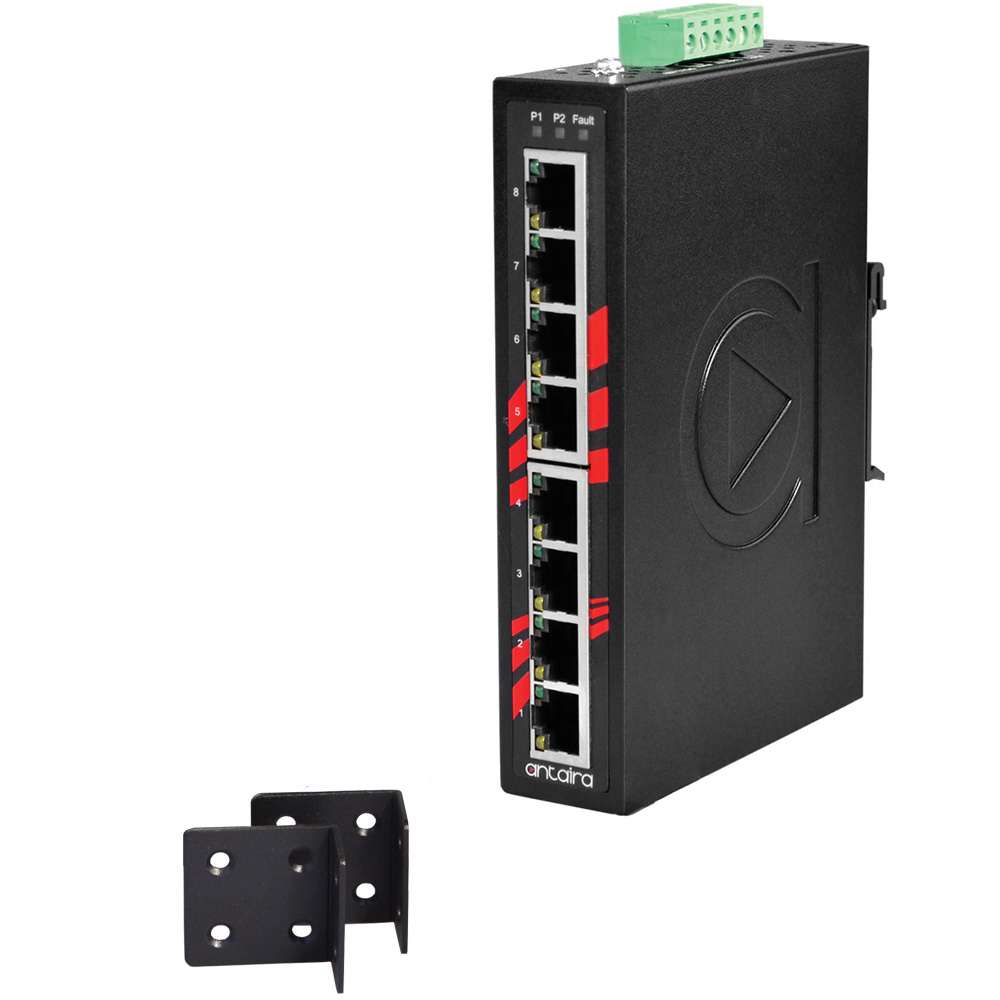

- LNX-800A-T-CC
Download
- Datasheet
- Hardware Manual
Optional Accessories
-
-
- DIN-RACK-2U
- Din-Rail to 19″ Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
-
- PA-STX-US
- Power Adapter for STE(W)-501/601 & LNX/IMC (US Plug). Input: AC 100-240V 50/60Hz 0.4A ; Output: DC 12V 1.25A
-
- DIN-RAIL-10
- 35mm Steel DIN-Rail Track – 10 Inches Long
-
Technology
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3x Flow Control
Performance
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
Ethernet Interface
Mechanical Characteristics
- Unit weight : 1.0 lbs
- Shipping weight : 1.5 lbs
Power Requirements
Environmental Limits
Regulatory Approvals
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
